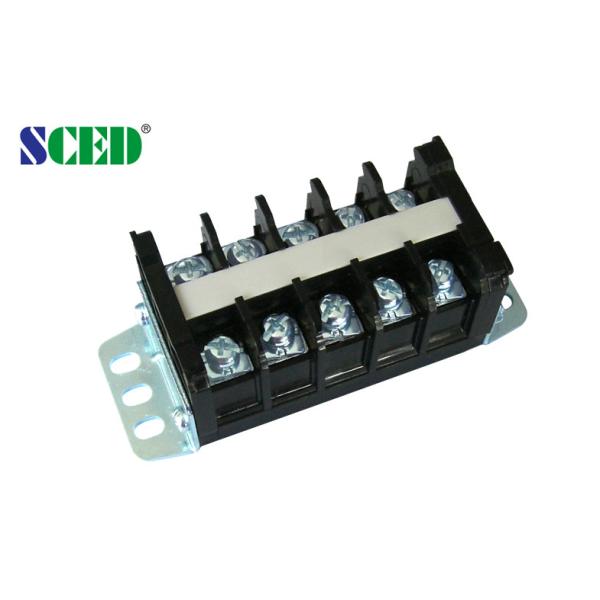

14.00mm Panel Mount Electrical Terminal Block , 600v 40a Pcb Barrier Terminal Blocks

Name: 1400mm Panel Mount Electrical Terminal Block 600v 40a Pcb Barrier Terminal Blocks
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TR40-01-BM0

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : Panel Mount Terminal Block,Barrier terminal blocks, Power terminal blocks, Electrical terminal Block

Pitch : 14.00mm

Number Of Contacts : Any Poles Available

Wire Range : 22-8

Rated Voltage : 600V

Rated Current : 40A

Color : Black

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Contact Now

How to order:
14.00mm Panel Mount Electrical Terminal Block , 600v 40a Pcb Barrier Terminal Blocks

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

14.00mm Panel Mount Electrical Terminal Block, 600v 40a Pcb Barrier Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 40	600 / 40
Wire Range AWG	22-8	22-8
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	800 /40	1000 / 40	1000 / 40
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	8
Material
Insulation Material / Inflammability Class	PC / UL94, V-0
Conduction Board/ Plating	Brass /Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	10-12
Screw Torque mm	M5 / 14-18

14.00mm Panel Mount Electrical Terminal Block , 600v 40a Pcb Barrier Terminal Blocks

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
