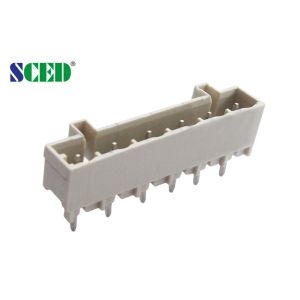

Grey 18A 7.50mm Plug In Terminal Block Male Header , Vertical Wire Inlet

Name: Grey 18A 750mm Plug In Terminal Block Male Header Vertical Wire Inlet
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TP508H-75

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Green

Number of Contacts : Any Poles Available

Pitch : 7.50mm

Rated Current : 18A

Rated Voltage : 300V

Type : Plug In Terminal Blocks,Pluggable Terminal Blocks, Plug-in Terminal Blocks

Wire Inlet : Vertical wire inlet

Contact Now

Grey 18A 7.50mm Plug In Terminal Block Male Header , Vertical Wire Inlet

□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels

This male header match with female plugs’ series: TP508P-75

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color
you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors

How to order:
Grey 18A 7.50mm Plug In Terminal Block Male Header , Vertical Wire Inlet

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 18		300 / 18
Wire Range AWG
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	500 / 18	630 / 18	1000 / 18
Rated Surge Voltage KV	6	6	6
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Terminal / Plating	Brass / Tin Plated
Other Data
PCB Hole Diameter mm	φ1.4
PinDimension mm	1.0 x 1.0

Grey 18A 7.50mm Plug In Terminal Block Male Header , Vertical Wire Inlet

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
